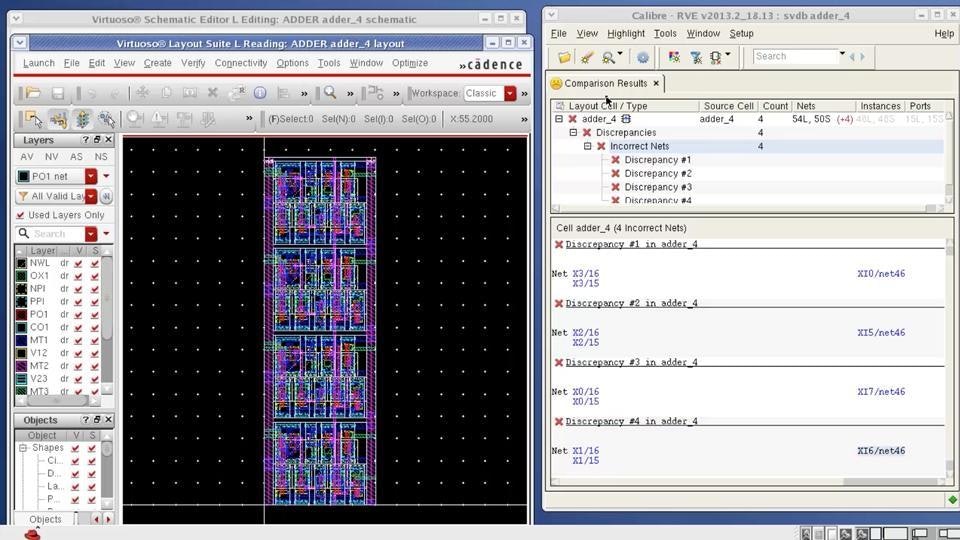

This video shows how to use Calibre RVE to trace and highlight the nets in the Cadence Virtuoso design-environment. Nets which are not output in Calibre LVS report can also be traced and highlighted using Calibre RVE just by a single mouse-click in the design-environment. The tracing of nets is also available in Synopsys Laker, Calibre DESIGNrev and other design environments into which Calibre is integrated.
