How to quickly select/unselect group of layers and change its visibility in DESIGNrev
Technology Overview
ABSTRACT

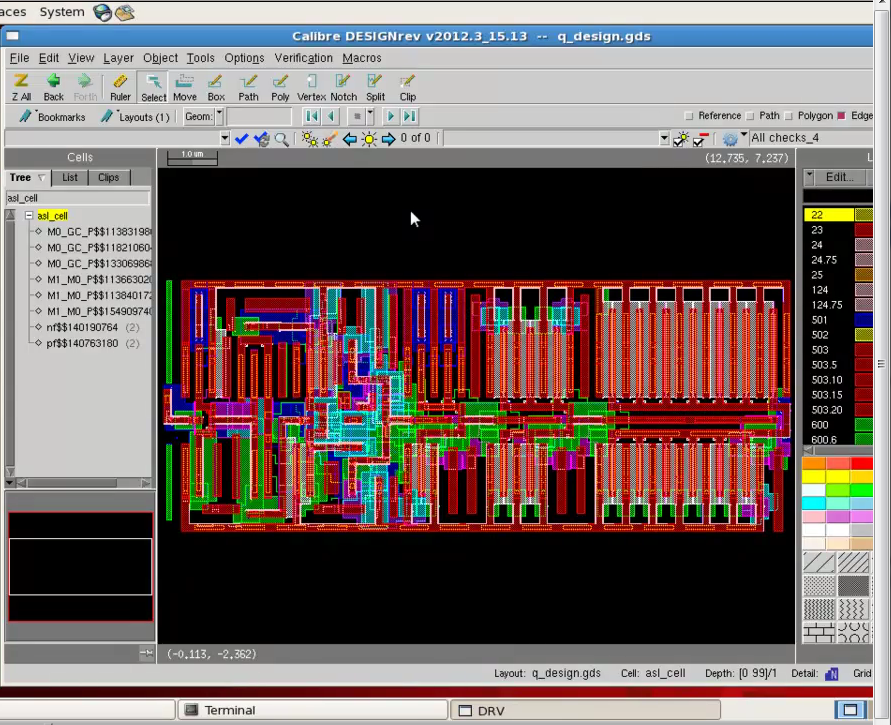

I have hundreds of layers in my design and I am only interested in showing the connectivity layers to debug Calibre DRC errors, so I want to quickly select / unselect the layers and show only the relevant layers. I also need an option so I can easily go back and forth between the previous layer selections. Luckily, Calibre DESIGNrev can help you with this issue, and we will show you in this video.
