FloEFD HVAC Module - Taking Built Environment CFD Simulation to the Next Level

The recently released FloEFD HVAC Module brings a raft of features specifically tailored to enable FloEFD to be used for built environment simulations. FloEFD  has an unrivalled pedigree in the automating of advance CFD (computational fluid dynamics) techniques and capabilities, allowing the user to focus on application and not numerics. This democratisation of CFD brings the ability to simulate the true 3D physics of air flow, contaminant dispersion, thermal comfort and thermal efficiency of the built environment to a much broader range of designers.

Occupant thermal comfort and the management of indoor air quality are key green building design challenges. Standards such as  ASHRAE Standard 55-2004 (covering thermal comfort in a space) and ASHRAE Standard 62.1-2007 (covering ventilation for acceptable indoor air quality (IAQ)) can be addressed using CFD simulation. FloEFD’s HVAC Module provides the ability to simulate the following metrics, allowing spaces to be designed so as to assure acceptable thermal comfort behaviour and maximised IAQ levels:


  • Predicted Mean Vote (PMV)
  • Predicted Percent Dissatisfied (PPD)
  • Operative (comfort) Temperature
  • Draft Temperature
  • Air Diffusion Performance Index (ADPI)
  • Contaminant Removal Effectiveness (CRE)
  • Local Air Quality Index (LAQI)
  • Flow Angle

Radiative heat transfer is central to the thermal efficiency of any given built environment. Whether it is short wave solar loading or the effects of infrared radiative exchange, FloEFD’s advanced radiation capabilities allow for the modeling of:


  • Semi-transparent solids (Radiation absorption in solids)
  • Wavelength dependency

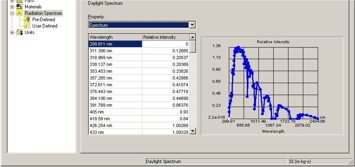

  • Spectrum definition
  • Specularity of surfaces
  • Refractive index

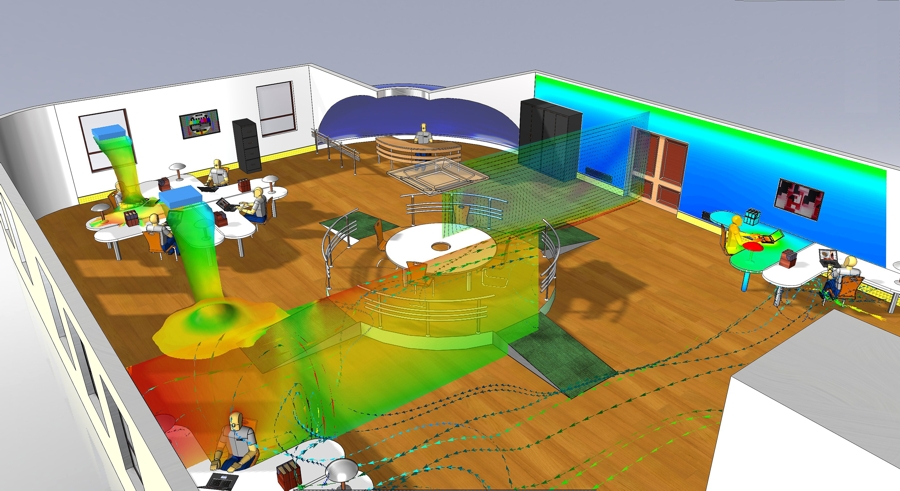

From atria with curved glass facades to car parks with jet fans and from hospital isolation rooms to pharmaceutical clean rooms; FloEFD’s HVAC Module and FloVENT provide the full spectrum of CFD solutions for the needs of built environment design.


31st January 2011, Ross-on-Wye


More Blog Posts

About Robin Bornoff Follow on Twitter

Robin BornoffRobin Bornoff achieved a Mechanical Engineering Degree from Brunel University in 1992 followed by a PhD in 1995 for CFD research. He then joined Mentor Graphics Corporation, Mechanical Analysis Division (formerly Flomerics Ltd) as an application and support engineer, specializing in the application of CFD to electronics cooling and the design of the built environment. Having been the Product Marketing Manager responsible for the FloTHERM and FloVENT softwares he is now Market Development Manager for the Physical Design of Electronics in the Mechanical Analysis Division. Visit Robin Bornoff's blog

More Posts by Robin Bornoff

Comments 4

Post a Comment
Interesting improvements! It looks like EFD is catching up on FloVENT in the area of HVAC rapidly. Is this the beginning of the end of FloVENT?

8:55 AM Feb 3, 2011

Not at all Andre! This HVAC module is a good compliment to FloVENT. Together we can now address a much wider range of HVAC applications.

Robin Bornoff
4:31 PM Feb 25, 2011

Hello! How is the "Comfort Temperature" defined in Flovent? Are there any big differences between "Comfort Temperature" and "PMV-PPD indexes" in predicting the indoor thermal comfort? Thanks! Adnan

Adnan Ploskic
8:55 AM Apr 19, 2011

Adnan, comfort temperature is defined as = (Tr + Ta(10V^0.5))/(1 + (10V^0.5)) where Tr is the mean radiant temperature and V is the air speed. It will result in a single temperature that can then be used to judge comfort (by relating it to an assumed 'acceptable' value). PMV and PPD are empircally derived measures of actual comfort experienced by humans defined on a number scale denoting: hot, warm, slightly warm, neutral, slightly cool, cool, cold.
