DxDesigner Navigator Tips

DxDesigner Navigator Tips

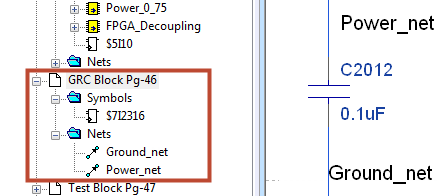

Are you aware of the power of the DxDesigner Navigator in EE7.9.4 or PADS 9.5?  As shipped the Navigator isn’t very exciting in appearance with the default display in the tree of symbol names and net names.  But it is useful for opening pages, zooming to a component, renaming nets and components or simply selecting a net and double clicking to zoom to fit.  Design information is lacking, because although nets are routinely named in schematics, component symbols are less often named because they already defined with reference designators.  In the example below the system name of $7I2316 for Reference Designator C2012 isn’t very descriptive to say the least.

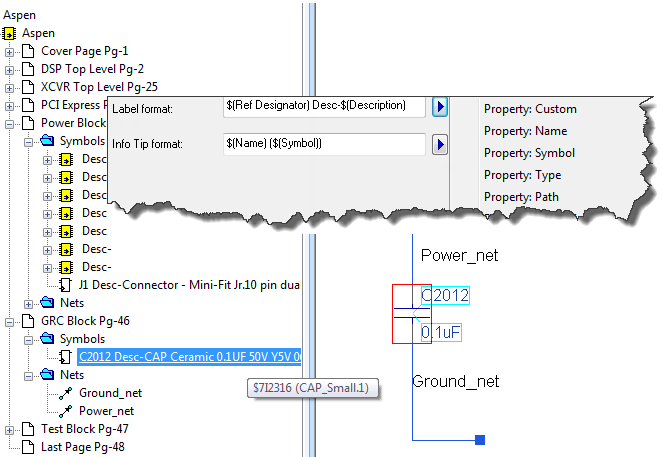

But did you know the Navigator is user configurable to display the information you consider important in a design.  You aren’t restricted only to names, any property can be displayed in the navigator.  In Setup> Settings> Navigator it is easily possible to enter common properties using a dropdown list, or enter your own custom property by using the key $(propertyname).  Descriptive text and limited punctuation can also be entered to enhance readability.   In this case I’ve changed the default display for the symbol from $(Name) to $(Ref Designator) Desc-$(Description).  The info tip is also fully programmable to display additional information like the symbol name shown in parenthesis.

Notice how much more information is available for you to correctly view your design without having to run special reports.  In my enhanced Description fields, value, the type of component, and even the footprint is all readily observed.  And the Description field is just one option, the possibilities for customization are endless!  Experiment for yourself and optimize your environment by customizing your Navigator view in DxDesigner.  If your not running DxDesigner 7.9.4 on your own machine yet, try this out in the Virtual Lab!
